Hydraulic Clutch Bleeding 6-Speed

Bleeding Procedure

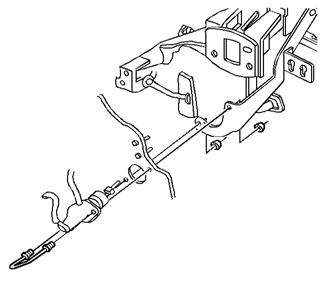

Object Number: 33396  Size: DEFAULT
Click here for detailed picture of above image.

  1. Loosen the clutch master cylinder nuts to the end of the threads on the U-bolt.

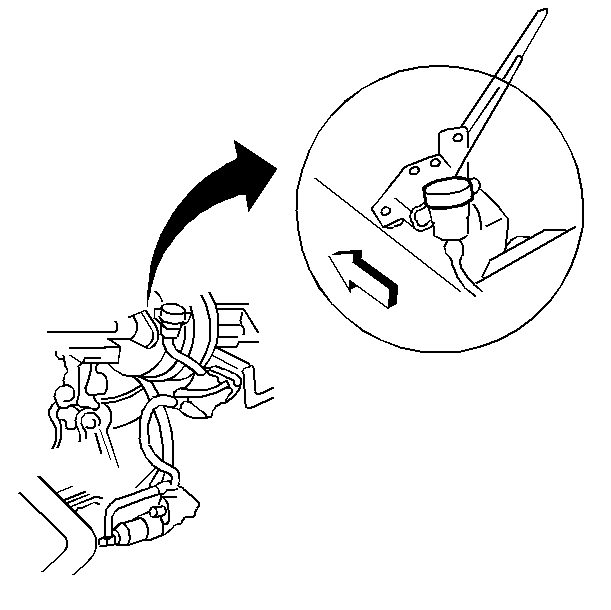

    Object Number: 33401  Size: DEFAULT
    Click here for detailed picture of above image.
  2. Clean any dirt and grease from the reservoir cap in order to ensure that no foreign substances will enter the system.
  3. Remove the reservoir cap and the diaphragm.
  4. Wrap a piece of mechanics wire around the left-hand hood strut bracket. Make sure the wire is accessible from underside of the vehicle.
  5. Raise the vehicle. Refer to Section 0A.

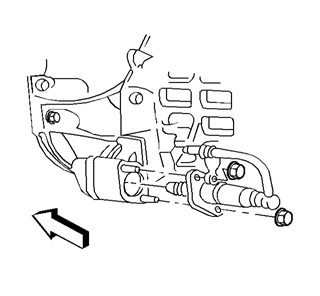

    Object Number: 33506  Size: DEFAULT
    Click here for detailed picture of above image.
  6. Remove the actuator cylinder nuts.

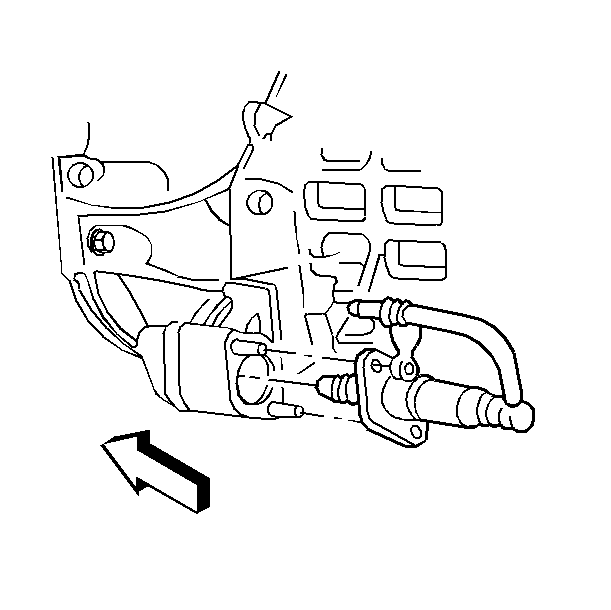

    Object Number: 33507  Size: DEFAULT
    Click here for detailed picture of above image.
  7. Remove the actuator cylinder. Retain the actuator cylinder in the engine compartment. Use the mechanics wire previously installed.
  8. Lower the vehicle.

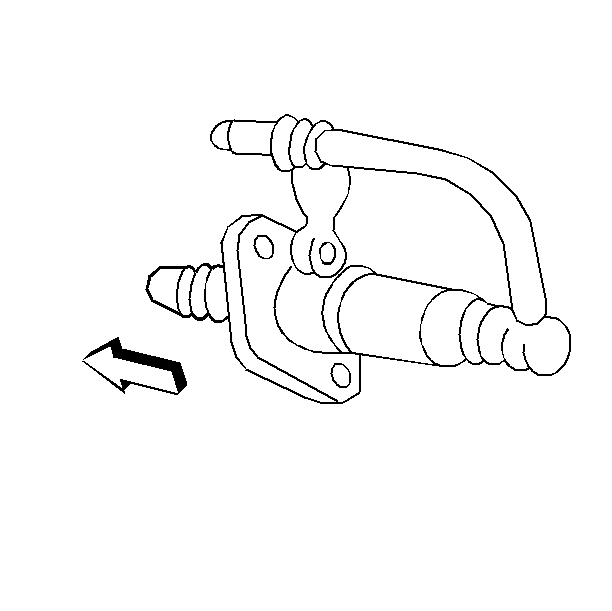

    Object Number: 33508  Size: DEFAULT
    Click here for detailed picture of above image.
  9. Grasp the actuator cylinder. Depress the hydraulic actuator cylinder pushrod approximately 20.0 mm (0.787 in) into the actuator cylinder bore and hold.
    Object Number: 33401  Size: DEFAULT
    Click here for detailed picture of above image.
  10. Install the diaphragm and the reservoir cap while holding in the actuator cylinder pushrod.
  11. Release the actuator cylinder pushrod.

Important

The actuator cylinder should be lower than the master cylinder.

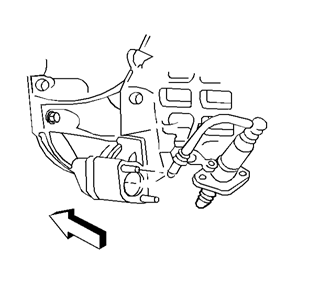

Object Number: 33510  Size: DEFAULT
Click here for detailed picture of above image.

  1. Hold the actuator cylinder vertically with the pushrod end facing down.

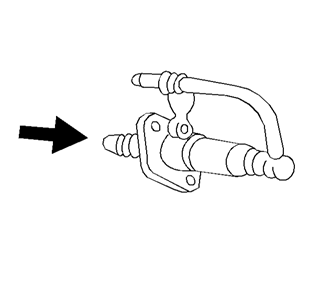

    Object Number: 33509  Size: DEFAULT
    Click here for detailed picture of above image.
  2. Press the pushrod into the actuator cylinder bore with short 10.0 mm (0.390 in) strokes.
  3. Inspect the master cylinder reservoir for air bubbles.
  4. Continue pressing the pushrod into the actuator cylinder bore until air bubbles no longer enter the reservoir.
  5. Raise the vehicle. Refer to Section 0A.
  6. Remove the actuator cylinder from the mechanics wire.
    Object Number: 33507  Size: DEFAULT
    Click here for detailed picture of above image.
  7. Install the actuator cylinder.
    Object Number: 33506  Size: DEFAULT
    Click here for detailed picture of above image.
  8. Install the actuator cylinder nuts. Tighten

Tighten the nuts to 20 Nm (15 lb ft).

Notice

Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

  1. Lower the vehicle.
  2. Remove the mechanics wire from the left-hand hood strut bracket.
    Object Number: 33396  Size: DEFAULT
    Click here for detailed picture of above image.
  3. Install the clutch master cylinder nuts. Tighten

Tighten the nuts to 27 Nm (20 lb ft).

  1. Inspect the fluid level in the clutch master cylinder reservoir. Fill the reservoir with hydraulic clutch fluid GM P/N 12345347 or the equivalent.
